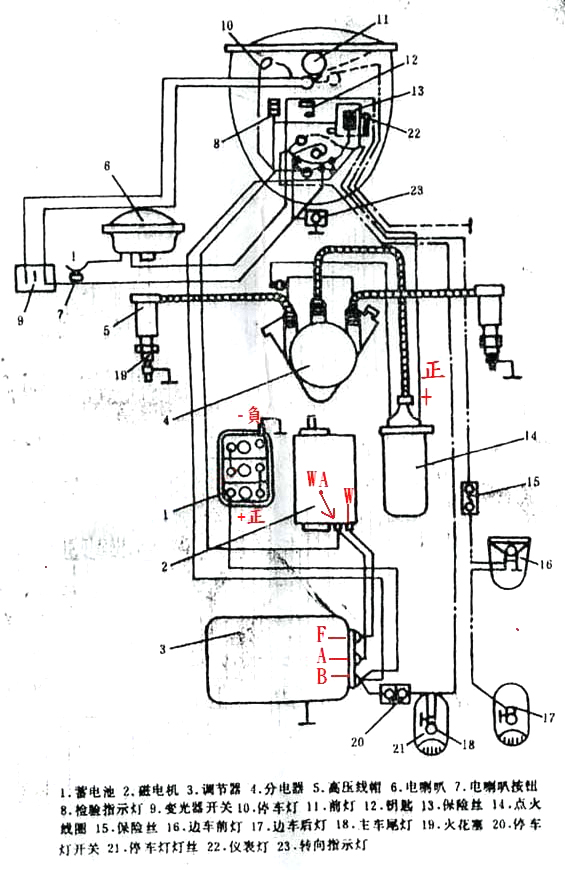

CJ750 M1 6V Electric Diagram

CJ750 M1 6V elecctric diagram. Can also reference for: BMW R71, Russian M72, URAL, K750, DNEPR and etc...

1. Battery
2. Generator
3. Voltage regulator
4. Distributor
5. Spark plug wire caps
6. Horn
7. Horn bottom
8. Check indicating light
9. High low beam switch
10. Stop light
11. High low beam
12. Ignition switch
13. Fuse
14. Ignition coil
15. Fuse
16. Sidecar front light
17. Sidecar rear light
18. Main rear light
19. Spark plugs
20. Break light switch
21. Stop light bulb
22. indicating light
23. turning light
